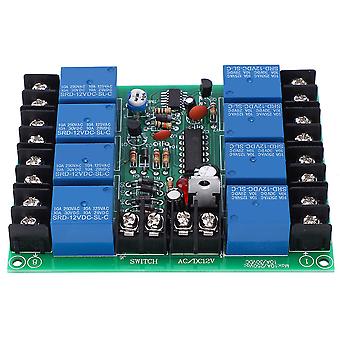

Relay Module, 8 Channels Power Time Sequence Board 0.2-4S Adjustable Sequential Controller Module 1ZV86

₪84.00
FREE Shipping

Relay Module, 8 Channels Power Time Sequence Board 0.2-4S Adjustable Sequential Controller Module 1ZV86

  • Brand: Unbranded

Relay Module, 8 Channels Power Time Sequence Board 0.2-4S Adjustable Sequential Controller Module 1ZV86

  • Brand: Unbranded
RRP: ₪129.00
Price: ₪84.00
You save: ₪45.00 (34%)
Sold by:
₪84.00
FREE Shipping

In stock

We accept the following payment methods

Description

Features Prevent Error Operation: Suitable for stage, KTV and other audio equipment, to prevent erroneous startup or simultaneous startup to damage the equipment. Wide Application: The power time sequence board is widely used in audio engineering, TV broadcasting system and other electrical engineering. Time Adjustment Range: 0.2 seconds-4.0 seconds is the time adjustment range. 8 channels power time sequence board, start in sequence and stop in reverse. Main Function: Used for time-sharing start of power distribution to prevent excessive starting current at the same time. Passive Output: Passive output (ie dry contact), NC-COM (normally open-common) of the relay. Specification: Item Type: Power Time Sequence Board Power Supply: 12V DC or AC, the minimum required current is 400mA, available in the range of 10V-17V. Number of Output Channels: 8 Output Capacity: 10A maximum per channel, 0-250V AC (or 30V DC) Output Method: Passive output (ie dry contact), relay NC-COM (normally open-public) Time Interval Adjustment Range: 0.2-4.0 seconds Response Speed: 20mS (20ms) Application Range: 1. The power distribution unit is started at different times to prevent excessive starting current at the same time. 2. Stage, KTV and other occasions to prevent the wrong start or simultaneous start damage equipment. Package List: 1 x Power Time Sequence Board Package List 1 x Power Time Sequence Board
  • Fruugo ID: 383688888-825885815
  • EAN: 9789622073128
