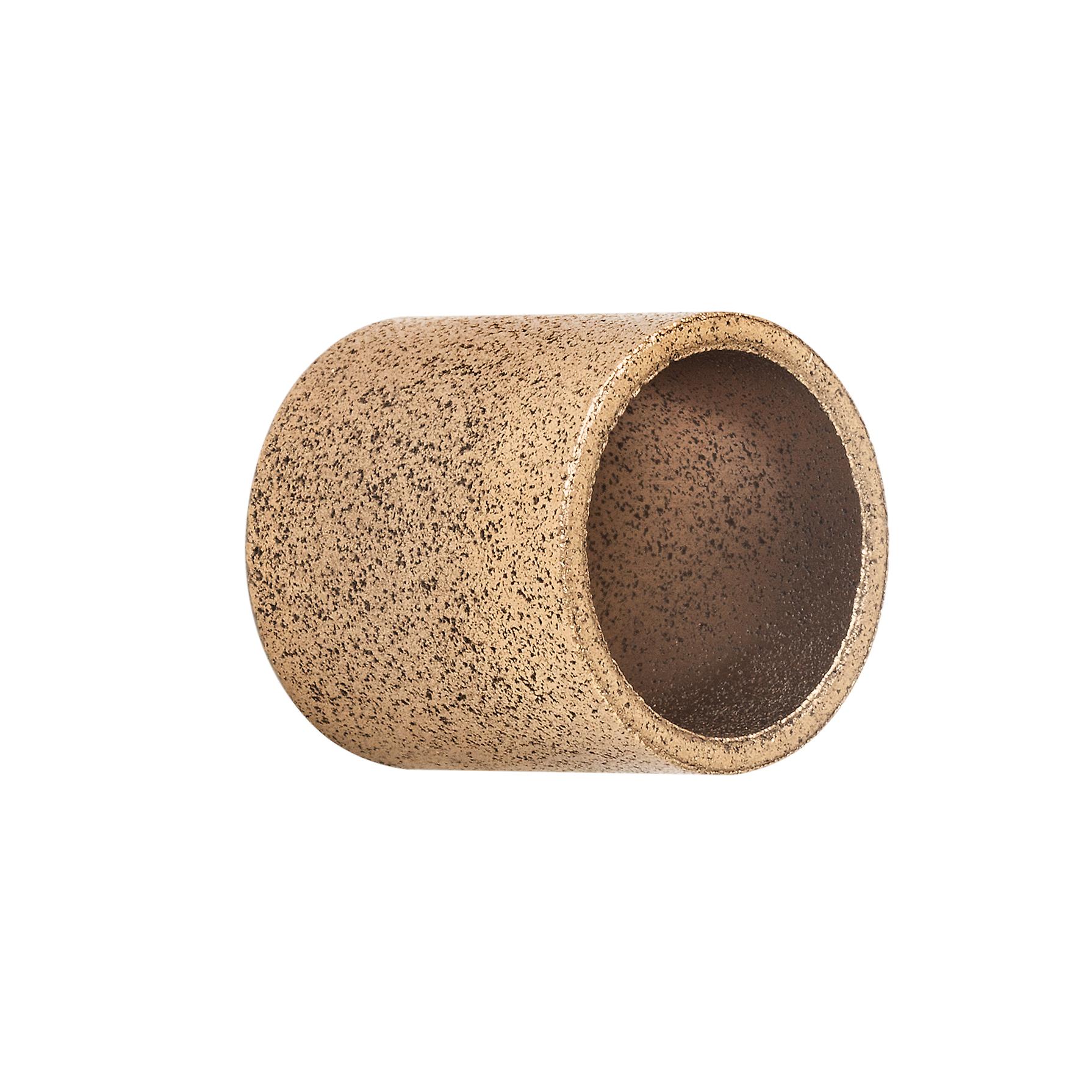

Product Details: Inner Diameter: 6. Outer Diameter: 9. Length: 10. Tolerance Range: UK Standard. Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2): 14. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 6.004 Max: 6.020 Tolerance: G7. Outside Diameter: Min: 9.023. Max: 9.038. Tolerance: s7. Overall Length: Min: 9.890 Max: 10.110 Tolerance: js13 Recommended Housing Size: 9.000 9.015 H7 Shaft Diameter: Min: 5.978 Max: 5.990 Tolerance: f7 Fitting Pin Size: Min: 6.004 Max: 6.009 Tolerance: m5 Concentricity Max: Min: 0.036 Max: 0.036 Tolerance: IT9 Inside Diameter When Fitted: Min: 6.000 Max: 6.012 Tolerance: H7 PV Calculation: Max RPM: 15915.49 Max Load (KG): 305.81 Max PV Factor (N/mm2 x m/s): 1.8
