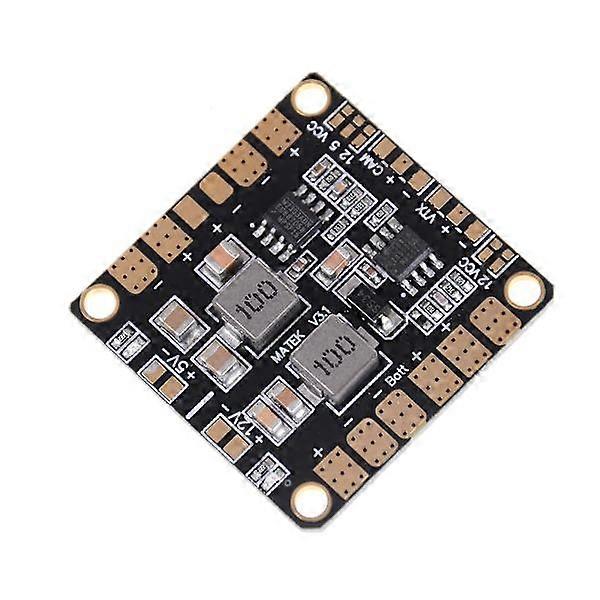

Features: - 2 oz copper and 4-layer PCB. - ESC & battery solder tabs in pairs - Solder bridges with different voltages for Camera & VTX. - DC/DC synchronous buck regulator, efficiency is up to 95%. - TVS (Transient Voltage Suppressor) protection for DC/DC chip. - 5V & 12V output LED indicators & short-circuit tolerant Specification: General: - Input voltage range (operation 2S-6S): 7.2 - 26VDC - Regulated 5V and 12V outputs - LED power (5V & 12V outputs) - 4 ESC outputs ESC Outputs: - Continuous current: 20A per output - Peak current (10 seconds/minute): 30A per output BEC 5V Output: - Designed for RC receivers, flight controllers, OSD, and servos. - Voltage: 5.0 +/- 0.1V DC - Continuous current: 3 Amps - Short-circuit tolerant (10 seconds/minute) - LED (indicates voltage is in regulation, within 10%) BEC 12V Output: - Battery should be 4S ~ 6S LiPo - Standard output designed to power cameras and video transmitters, etc. - Voltage: 12.0 +/- 0.2VDC - Continuous current: 2 Amps (max.3A 10s/minute) - Short-circuit tolerant (10 seconds/minute) - LED (indicates voltage is in regulation, within 10%) CAM & VTX Voltage Bridge - 3S operation. Select VCC for 12V camera & 12V VTX, VCC = Battery Voltage. - 4~6S function, select 12 for 12V camera and 12V VTX - 3~6S function, select 5 for 5V camera - Video pass from CAM pad to VTX pad Physical: - Dimensions: 36 x 36 mm - Weight: 6g - Mount holes 30.5mm square spacing Package Including: 1 x Power Distribution Board PDB
