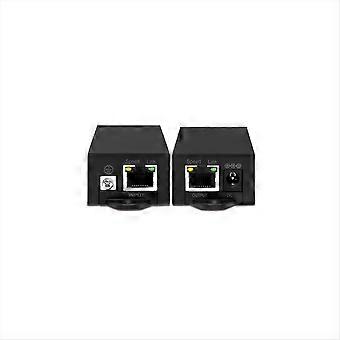

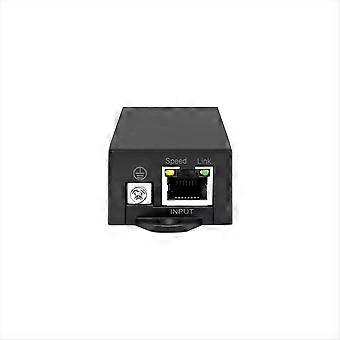

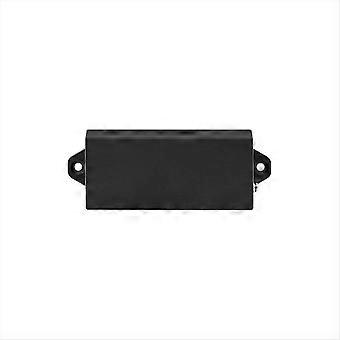

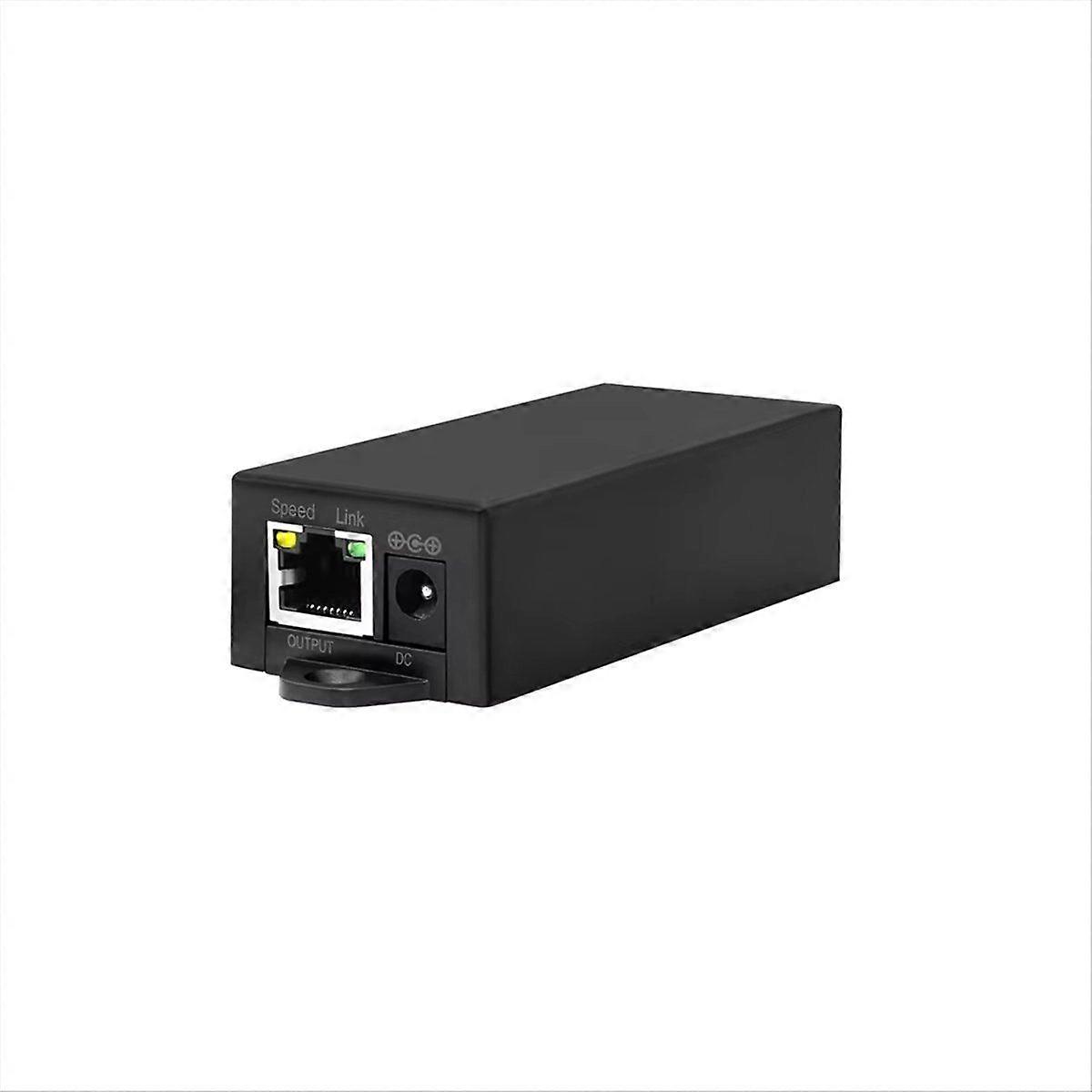

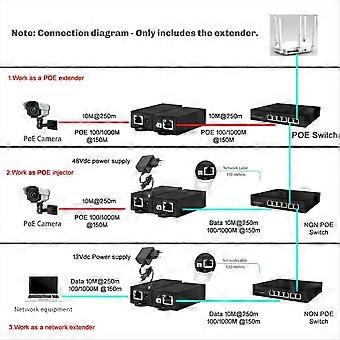

Product Name: Multifunctional standard Poe to 24V non standard Poe converter. It must be used in conjunction with a POE switch. Ports: It is equipped with 1 x 10/100/1000m RJ45 IEEE802.3af/at Poe input port and 1 10/100/1000m RJ45 passive 24V Poe output port. PoE Pins: For POE IN, the input voltage range is 37-57V, with pin configuration 1245+ and 3678-. For POE OUT, it outputs DC 24V 1A, with pin configuration 45+ and 78-. The RJ45 port outputs DC24V 1A, with a maximum power of 24W. The DC5521 port outputs DC12V 0.5A, with a maximum power of 6W. The converter is without power supply by default. An optional 30-57V is available, and it's used as an injector with this power supply; It supports IEEE 802.3af/at and Passive 24V POE network protocols. (The product printed words depending on the batch, but this does not affect use) Specification:90W Color:As Shown Material:ABS Package Contents: 1 * POE Extender Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
