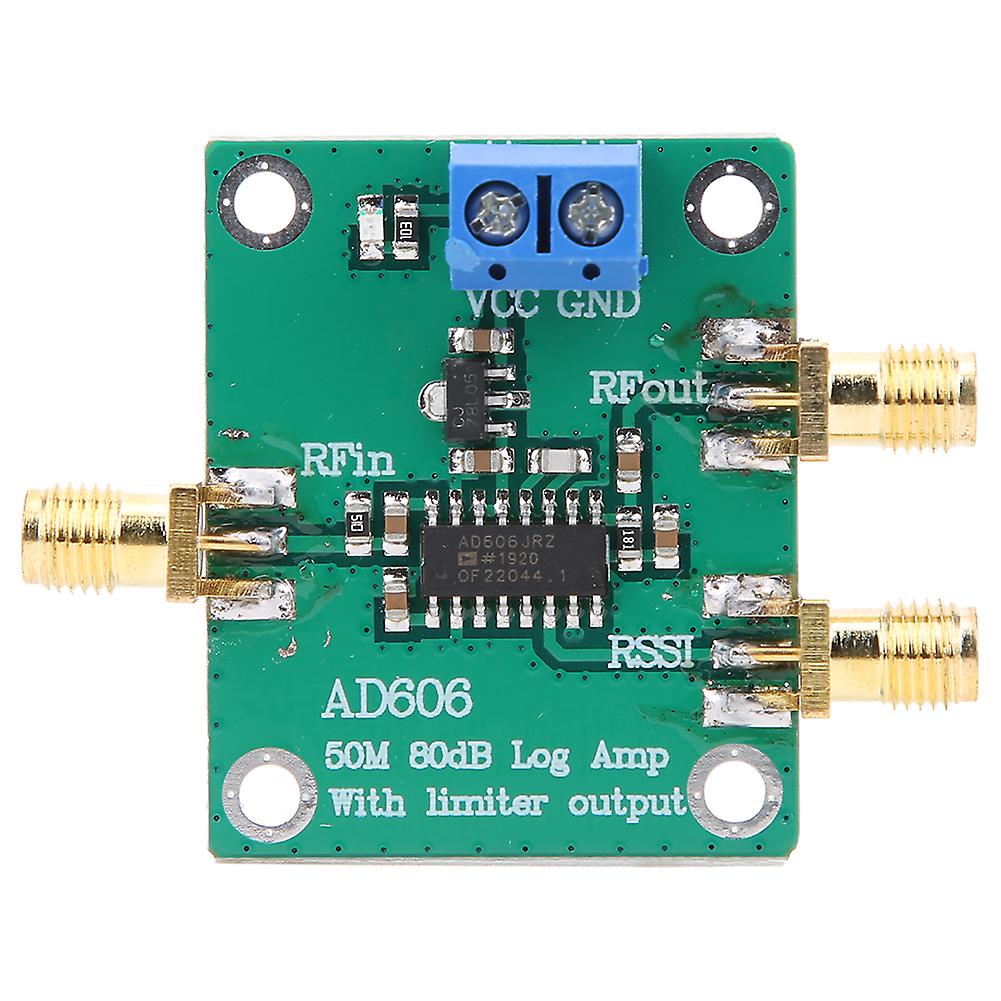

Features 1、With offset control circuit to eliminate input offset voltage. Adjustable output amplitude. 2、CMOS compatible power consumption reduced to 325 mW (typical value). 3、The amplifier module supports limiter output. Adjustable output amplitude and low power consumption. 4、Small size, easy to install and remove, AD606 80dB demodulation logarithmic amplifier. 5、‑75 dBm to +5 dBm Dynamic range, 37.5 mV/dB voltage output. Specification Condition: 100% Brand New Item Type: AD606 Module Material: Plastic AD606 80dB demodulation logarithmic amplifier, frequency exceeds 50MHz 1. Auxiliary limiter output 2. Output flatness: ±1 dB (within 80dB) 3. Phase stability: ±3 degree (10.7 MHz, 80dB) 4. Adjustable output amplitude 5. Low power consumption With offset control circuit to eliminate input offset voltage Power supply voltage range: 5V Chip features: Log amplifier performance -75 dBm to +5 dBm dynamic range ≤1.5nV/√Hz input noise Available for> 50 MHz 37.5 mV/dB voltage output On-chip low-pass output filter Limiter performance 61 dB output flatness in the 80 dB range 638 phase stability at 10.7 MHz in the 80 dB range Adjustable output amplitude Low power +5 V single power supply Typical power consumption 65 mW CMOS compatible power consumption reduced to 325 mW (typical value) <5 ms enable/disable time Package List 1 x AD606 Module
