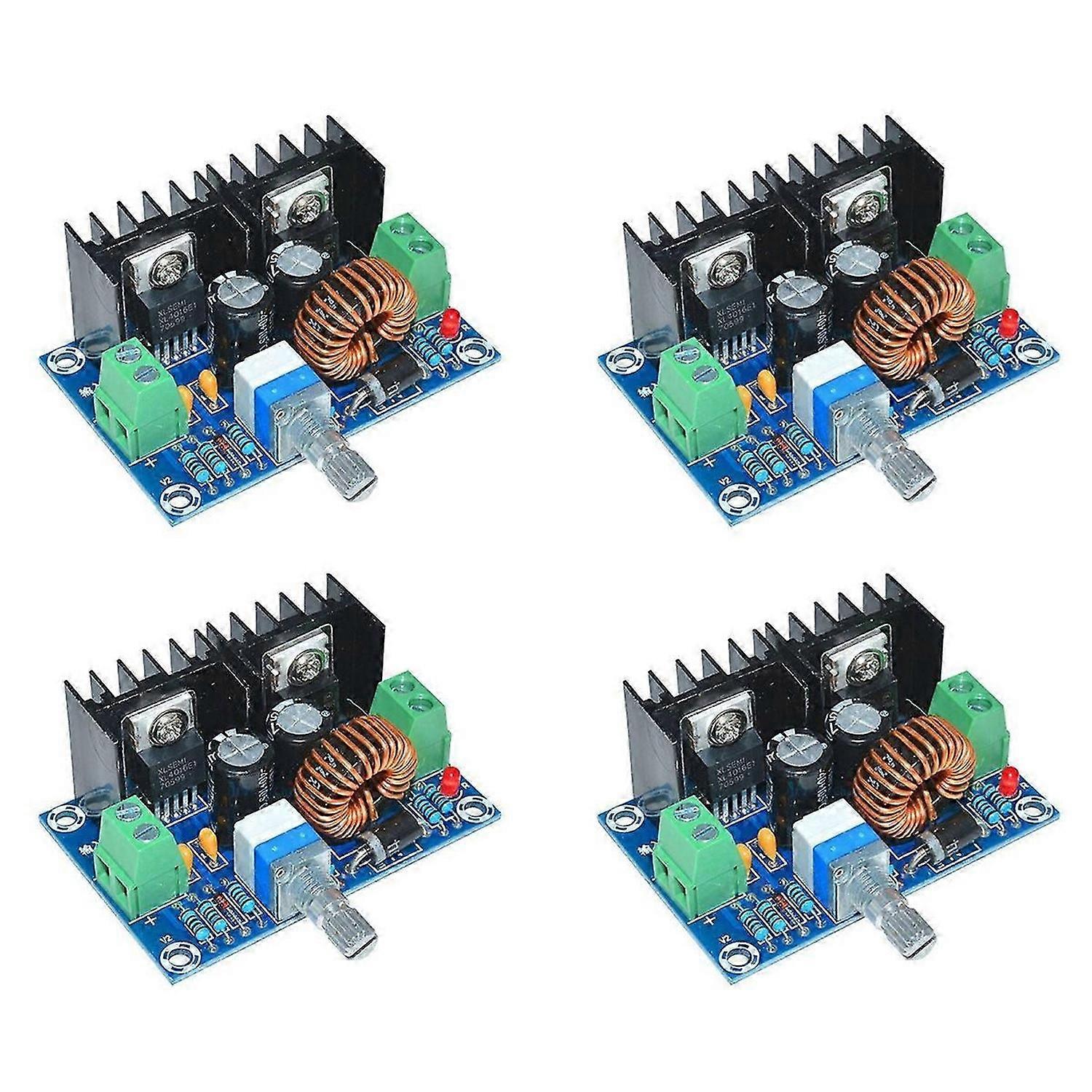

Model Number: XH-M401 Type: Voltage Regulator Operating Temperature: standard Condition: Supply Voltage: 4-40V To 1.25-36V is,customized: Yes Dissipation Power: standard Application: Computer Package: other match 1: diy match 2: dc - dc match 3: dc buck converter match 4: 1.2v-36v converter match 5: 100w match 6: 100w module match 7: dc dc Descrizione del prodotto Product name: DC step-down module Converter Voltage regulating mode: PWM modulation Input voltage: DC4-40V Output voltage: DC1.25-36V Max output current: 8A (more than 5A for long time use,need Fan if over 5A) Max power: 200W Conversion efficiency: 94% Switching frequency: 180KHZ Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection When reach maximum output current 8A, need to add fan. Long term work recommended about 5A Panel Mounting: 1. Drill holes in the Panel 7mm 2. Extended potentiometer handle 3. Lock screw sleeve upper knob colour: photo color Material: metal size: Dimensions: 61 x 41 x 27mm Package Contents: 4 x DC voltage power module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
