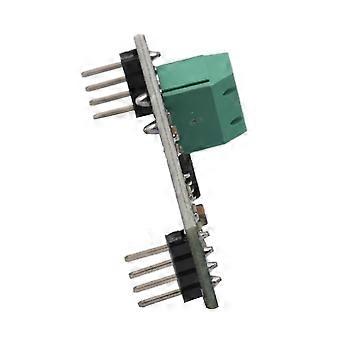

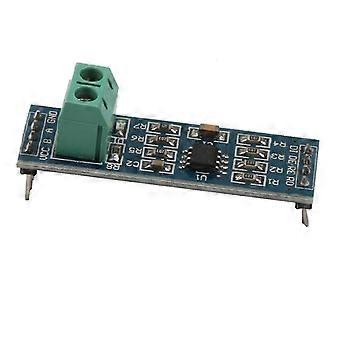

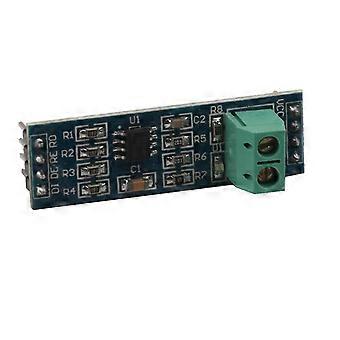

Description: MAX485 chip is a low-power and slew-rate-limited transceiver used for RS-485 communication. It works at a single +5V power supply and the rated current A. Adopting half-duplex communication to implement the function of converting TTL level into RS-485 level, it can achieve a maximum transmission rate of 2.5Mbps. MAX485 transceiver draws supply current of between 120A and 500A under the unloaded or fully loaded conditions when the driver is disabled. The driver is limited for short-circuit current and the driver outputs can be placed at a high impedance state through the thermal shutdown circuit. The receiver input has a fail-safe feature that guarantees logic high output if the input is open circuit. In addition, it has a strong anti-interference performance. Specification: MAX485 chip is a low power consumption for RS-485 communication, limit the slew rate transceiver Then 5.08 (mm) pitch 2P terminal, convenient RS-485 communication wiring Chip leads all pins can be controlled through the microcontroller Operating voltage: 5V Size: Approx.44 x 14 mm/ 1.73 x 0.55inch Package Includes:(4 Pack) 1 x Module Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-YJL official store
