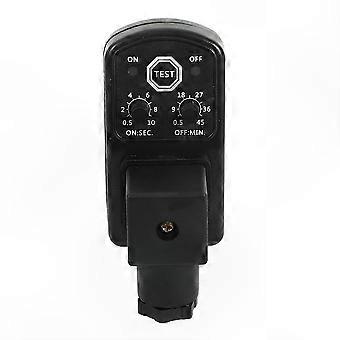

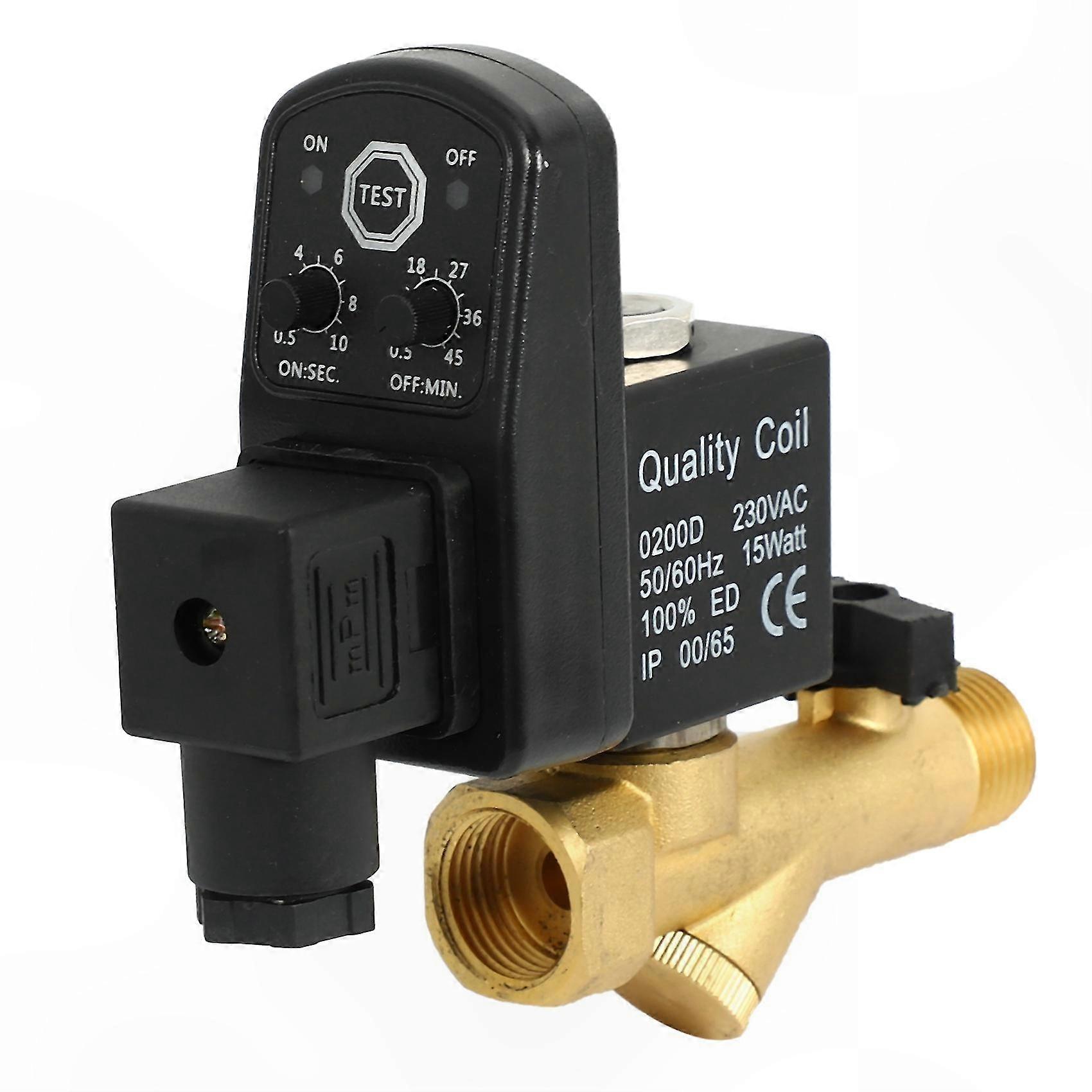

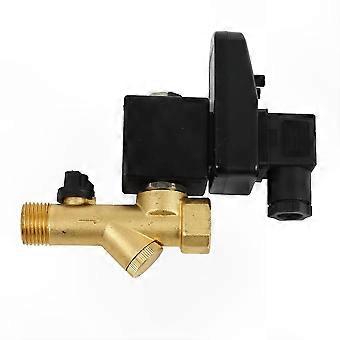

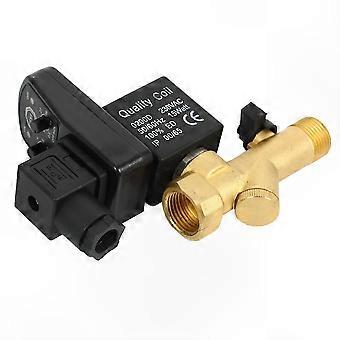

Name: Electronic Drain Valve Model: 507292 Indicator Lamp: LED indicating on/off status Voltage Range: +/-10% Protection Grade: IP65 Insulation Class: H Maximum Working Pressure: 1.6 MPa Maximum Temperature: 90°C Ambient Temperature Range: -40°C to 60°C Maximum Current Consumption: 4 mA Supply Voltage: 24-240V AC/DC, 50/60 Hz Discharge Time (ON): 0.5–10 seconds Time Interval (OFF): 0.5–45 minutes Commonly used in filters, separators, dryers, gas tanks, drip legs, and other compressed air system components Clean the compressed air system before installation Observe correct valve installation direction: ensure outlet is not blocked and hose is not subjected to impact Ensure supply voltage matches drain valve voltage specification; when using DC, connect positive pole to terminal "1" Drain valve comes pre-wired from factory: brown wire for live (L), blue wire for neutral (N), yellow-green wire for safety ground (GND) Tighten the screws on the terminal box securely to prevent water ingress Warning: Before installing the electronic drain valve, ensure: Compressed air system is fully depressurized Power supply is disconnected Color: Gold + Black Material: Metal Size: Aperture: 5 mm Inlet/Outlet Port Size: 1/2 inch Package Contents: 1 x Electronic Drain Valve Note: Other items not included. Lighting and display settings may cause slight color variation between image and actual item. Measurement tolerance: +/- 1–3 cm
