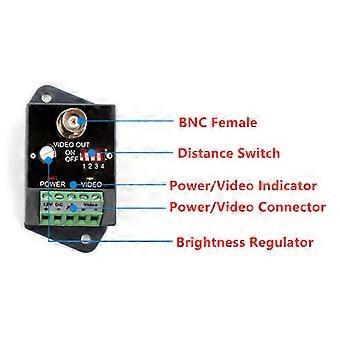

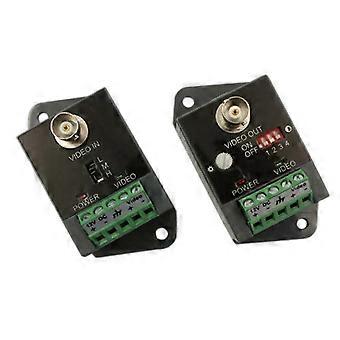

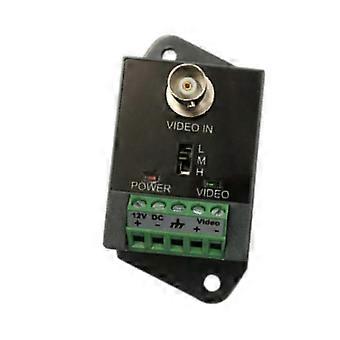

Description Report Item Technical specifications: SUPPORT:HD-TVI-CVI-AHD-CVBS AHD: 720P/1200M,1080P/900M,300W/400W: 750M CVI: 720P/1200M,1080P/900M,300W/400W: 750M TVI: 720P/1000M,1080P/800M,300W/400W: 650M CVBS: 1200TVL/1800M Type: 1CH Active Frequency respons: DC-6Mhz Conmmon-mode/Differential-mode Rejection: 15Khz 6Mhz 60dB typ Power: 12V DC Impedance: Coax,male BNC: 75ΩUTP(Screwless)Terminal Block UTP RJ45 Data Connector: 100Ω Wire type: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal: DC Loop Resistance 52 ohms per 1000 ft(18 ohms per 100m) Surge suppression: 6000V 1.2μ S x 5μ S Control: Brightness and Sharpness UTP Port: Terminal Block Dimensions: 103mmx70mmx30mm Weigth: 100g Temperature: -10~+50℃ Humidity: 0~95% color: Black Material: plastic+metal Package Contents: 3 x transmitter kit Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
