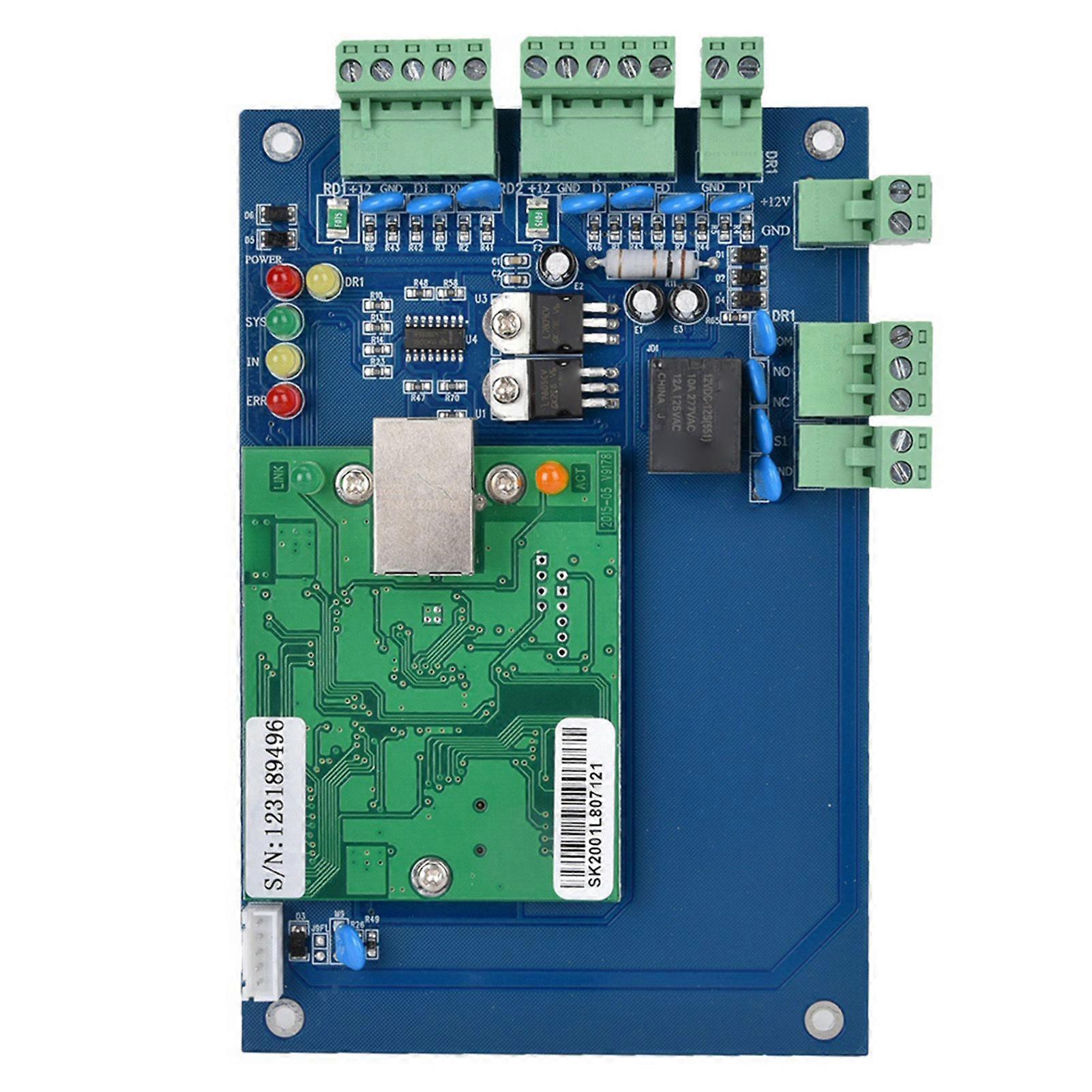

TCP/IP Full Card Network Door Access Control Kit Access Card Reader Control Board Feature: Made with  high strength metal for maximum durability. Lock tongue structure embroidered steel precision casting. 500kg thrust under tension. 100m maximum distance card reader to controller(recommended distance of 80m). Suitable for door type wooden door, metal door and PVC door. Specification: Condition: Communication: TCP IP Software support: database SQL Control: Control 1 door, enter and exit through card and keyboard or exit through button Power supply: 12VDC; 4-7A Circuit Board Power Consumption: Less than 100mA Reader: Wiegand 26/34-bit input format Number of readers: 2 Number of control doors: 1 Opening time extension setting: 1-600 seconds (adjustable) Maximum number of controllers: unlimited Working temperature: - 40 ~ 70℃  Operating humidity: 10-90% RH, no condensation Number of users: 20,000 Event Buffer (Offline): 100,000 Event Buffer Power interrupt protection measures: high-speed memory, record never lost Card reader to controller: maximum distance of 100m (recommended distance of 80m) Alarm function: support Fire and alarm linkage: If there is no connection with the expansion board, only the software interface alarms and drives the computer loudspeaker. If the expansion board is connected, the alarm can be made by hardware, and if the expansion board is  connected, the security alarm can be made. 08V ID Card Reader Color: Black Working Current: <100mA Work environment: - 10 ~70℃ Induction distance: 3-5 cm Output format: Wiegand26/34 Read card type: EM-ID 131 cathode lock NO The size of the lock body: Approx 150*39.5*33.5mm Working current: 12V/240mA; 24V/120mA Safety type: power off lock (YS-131NO), power off unlock (YS-131NC) Surface temperature: lower than ambient temperature and less than 20. Applicable temperature: - 10 ~ + 55℃(- 14 - 131F) Applicable humidity: 0-95% (relative humidity) 12V3A Access Control Power Supply Output current: 3A Power: 30W Delay range: 0-15S Product size: Approx 104*68*32mm Fitment: 1 * Access Card Reader 1 * Access Control Board 1 * cathode lock 1 * switch 1 * power supply 5 * access control card Note: 1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
